Professional Stage/Tour Performance

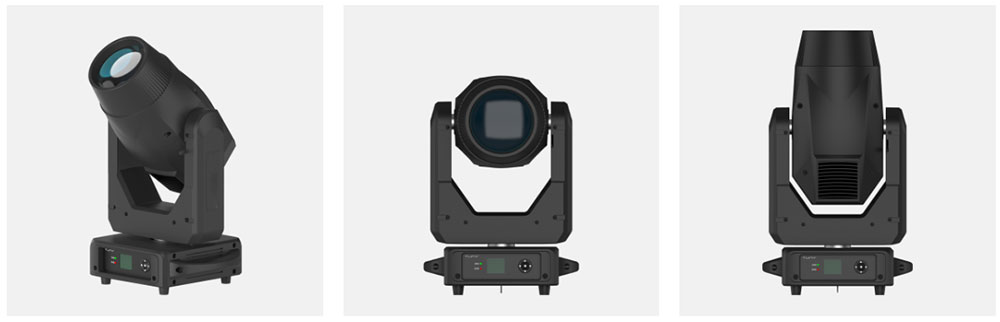

380BSW
Parameters
main features
·Output lens diameter: 138mm
·Electric linear focusing system

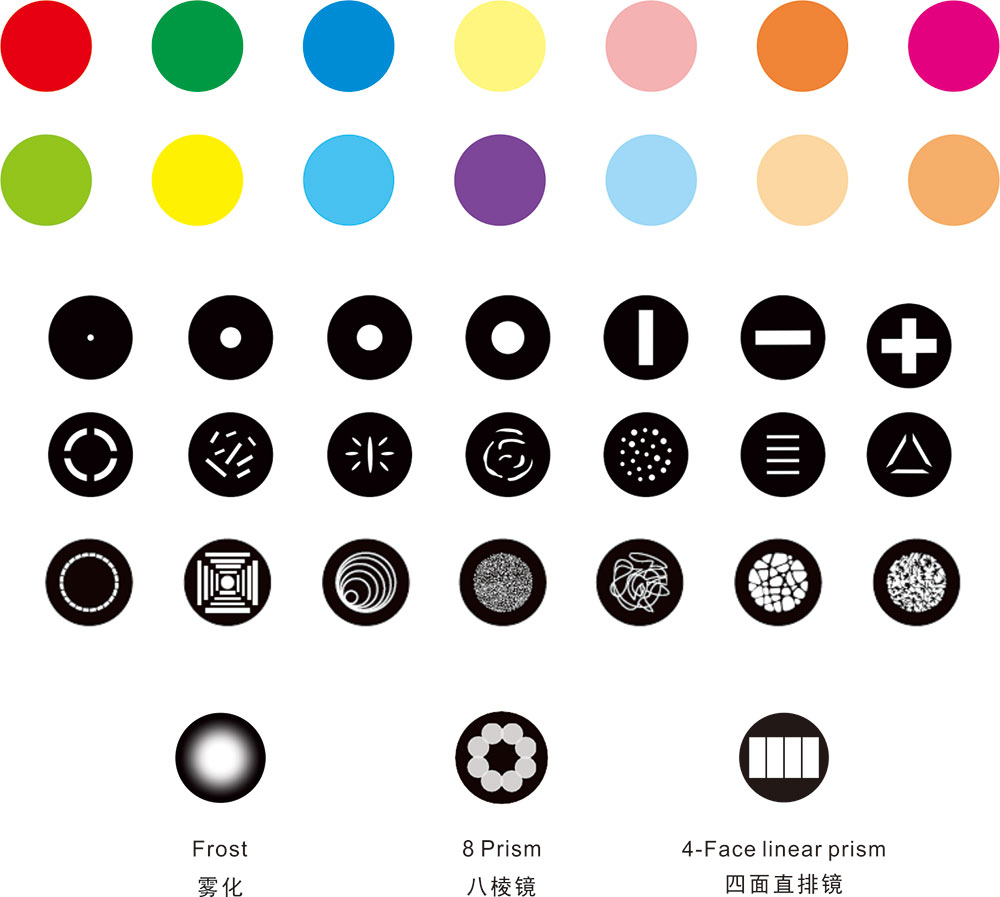

·1 color palette: 14 colors+white, rainbow effect
·1 fixed pattern plate: 14 patterns+white circles
·1 rotating pattern plate: 5 black+2 colored glass patterns+white circles
·Prism: 2 bi-directional rotating prisms; 1 4-sided straight mirror, 1 octaprism
·Atomization effect
·The saturation of the pattern is greater than 85%
·0-100% smooth dimming
·Multiple flicker speed effects
technical specifications
·Light source: PHILIPS 380W or customized 380W (2000 hours)
·Color temperature: 7800K

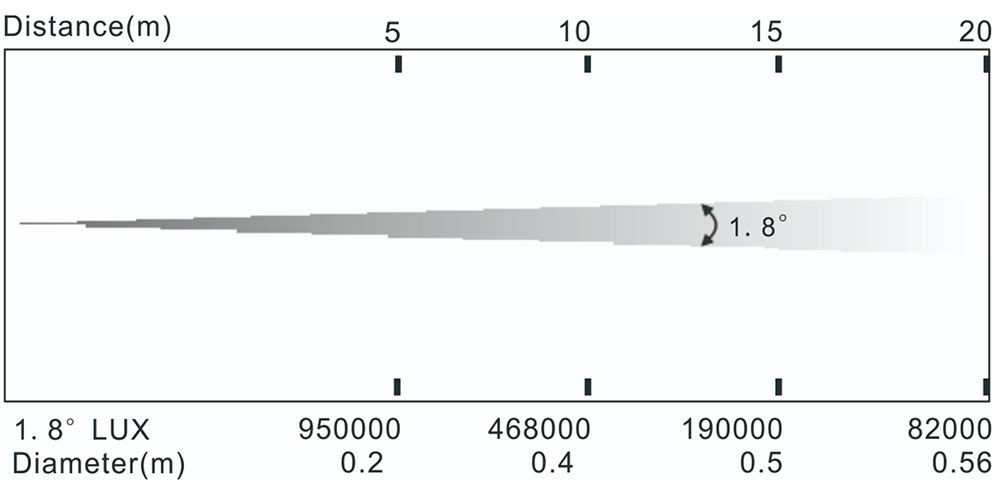

·Light angle: 1.8 ° -50 °
·Channel mode: 24CH
·Control protocol: DMX512, RDM
·X-axis/Y-axis: 540 °/270 °
·Precision: 16 bit precision scanning
·Correction: Automatic correction of X-axis/Y-axis position out of step
·Display: LCD display screen
·Signal input/output: Three core XLR socket
·Power socket: power connector input/output
·Protection level: IP20
Physical parameters
·Input power supply: 100-260V~50/60Hz
·Power: 500W

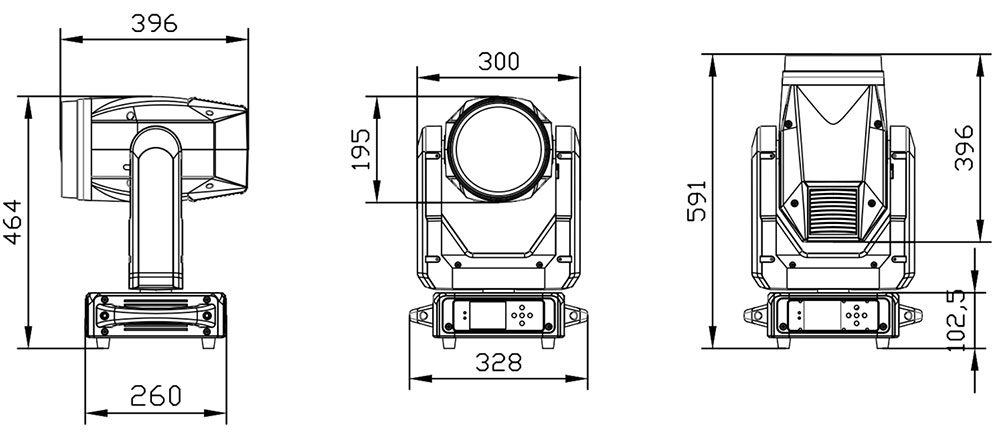

·Size: 328x260x591mm
·Carton size: 415x430x645mm
·Air box size: 610x330x740mm (1 pack of 2)
·Net weight: 17kg
·Gross weight: 20kg (including cardboard boxes, 1 pack, 1 standard)
53kg (including aviation box, 1 pack with 2 standard)
