Professional Stage/Tour Performance

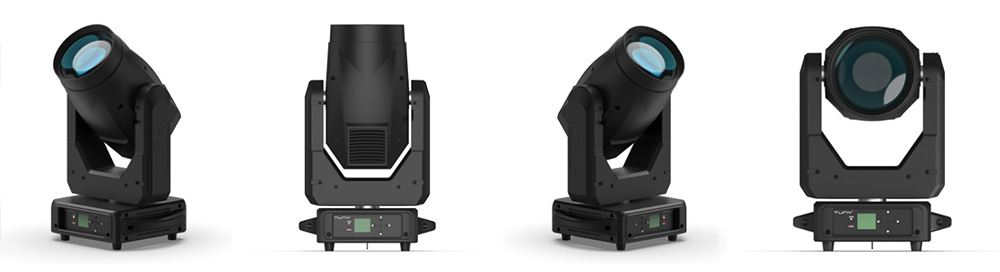

LED XT1 BS
Parameters
main features
·Output lens diameter: 125mm.
·Electric focusing system.

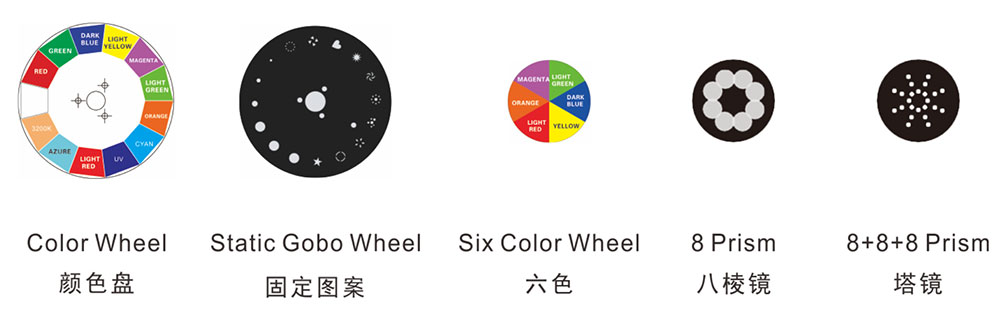

·1 color palette: 12 colors+white, rainbow effect.
·1 fixed pattern plate: 15 patterns+white circles.
·Prism: 1 bi-directional rotating octaprism.
·1 spherical magnifying glass.
·Excellent rainbow effect.
·0-100% smooth dimming.
·Multiple flicker speed effects.
·Optional configuration of head ring LED halo.
technical specifications
·Light source: module LED150W (20000 hours)
·Color temperature: 9800K

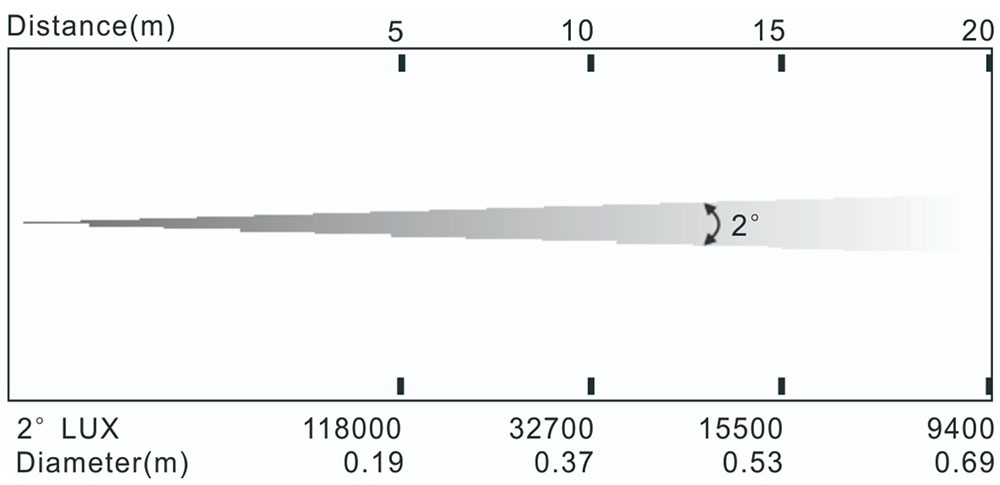

·Beam angle: 2 °
·Channel mode: 16CH
·Control protocol: DMX512, RDM
·X-axis/Y-axis: 540 °/270 °
·Precision: 16 bit precision scanning
·Correction: Automatic correction of X-axis/Y-axis position out of step
·Display: LCD display screen
·Signal input/output: Three core XLR socket
·Power socket: power connector input/output
·Protection level: IP20
Physical parameters
·Input power supply: 100-260V~50/60Hz
·Power: 220W

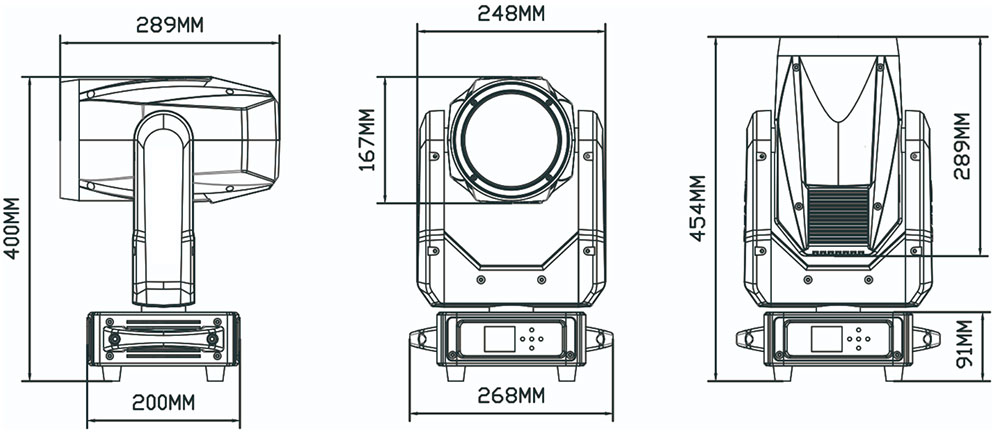

·Size: 268x220x454mm
·Carton size: 350x370x480mm
·Air box size: 490x310x600mm (1 pack of 2)
·Net weight: 8kg
·Gross weight: 10kg (including cardboard boxes, 1 pack, 1 standard)
30kg (including aviation box, 1 pack with 2 standard)
